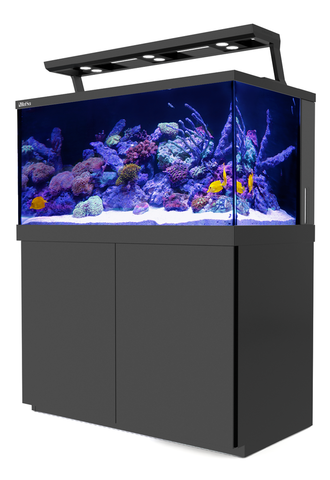

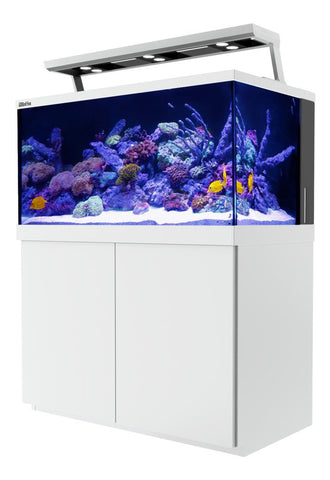

WiFi controlled Hydra 26™ HD LED lighting, REEF-SPEC® filtration and circulation systems, customizable fascia and a one-plug control center allow you to focus on the beauty and diversity of your own piece of coral reef, rather than worrying about component selection, suitability and compatibility.
| MAX® S Model | ||||
| Specification | Description | MAX®S 400 | MAX®S 500 | MAX® S 650 |
| System water volume | Combined aquarium and sump | 400 L (110 gal) |
500 L (135 gal) |
650 L (175 gal) |
| Aquarium volume | Display tank with rear circulation pump chamber | 350 L (97 gal) |
440 L (119 gal) |
560 L (150 gal) |
| Filtration sump volume | Glass sump with preparation for auxiliary reactors or refugium | 50 L (13 gal) |
60 L (16 gal) |
90 L (25 gal) |
| Aquarium glass thickness | Ultra clear front and side panels | 12 mm (1/2”) |
12 mm (1/2”) |
15 mm ( 5/8”) |
| Surface skimmer | Built in suface skimmer on full width of aquarium | √ | √ | √ |
| Lighting system | AI Hydra 26™ HD (90W)* | 2 unit | 3 unit | 4 unit |
| Lighting – standard configuration | Full spectrum with nominal total output | 180W | 270W | 360W |
| Lighting control | WiFi based system compatible with all iOS, Android, and WiFi enabled Mac or PC. | √ | √ | √ |
| Total circulation l/h (gph) | Sump return + hidden individual 2,150 l/h (570 gph) circulation pumps | 7800 (2000) |
9500 (2500) |
13600 (3600) |
| Main system pump l/h (gph) | Sump return + feed to skimmer / chiller / reactors | 7000 (1850) |
7000 (1850) |
7000 (1850) |
| Protein skimmer – C-Skim 1800 | 800 l/h (210 gph) air flow – 1800 l/h (480 gph) water flow (PSK aspirator) | √ | √ | √ |
| Integrated power center | 10 individually switched sockets for pumps and accessories | √ | √ | √ |
| Integrated water top up system | Easy-access storage tank with in-sump float valve | 22 L (6 gal) |
29 L (7.5 gal) |
38 L (10 gal) |
| Mechanical filtration | Micron filter | 2 | 2 | 2 |
| Chemical filtration | 600g (20 oz.) high grade phosphate-free activated carbon | √ | √ | √ |
| Cabinet frame | Marine spec anodized aluminum profile | √ | √ | √ |
| Cabinet external | Weatherproof Polyurethene painted MDF doors & panels | √ | √ | √ |
| Cabinet Internal | Waterproof sump compartment, dedicated chiller compartment | √ | √ | √ |
| Length | Display tank (MAX® S Including Color Trim) | 104 cm (41″) |
128 cm (50.5″) |
160 cm (63″) |
| Width | Display tank (MAX® S Including Color Trim) | 70 cm (27.5″) |
70 cm (27.5″) |
70 cm (27.5″) |
| Height | Display tank | 64 cm (25”) |
64 cm (25”) |
64 cm (25”) |
| Total system height (excluding LED light unit) | 156 cm (61″) |
156 cm (61″) |
156 cm (61″) |
|
