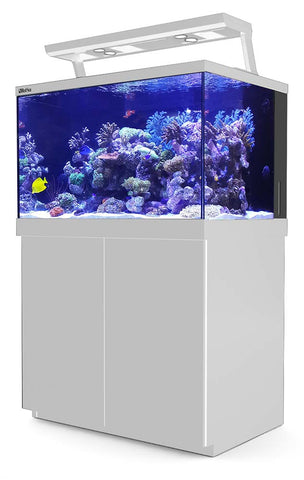

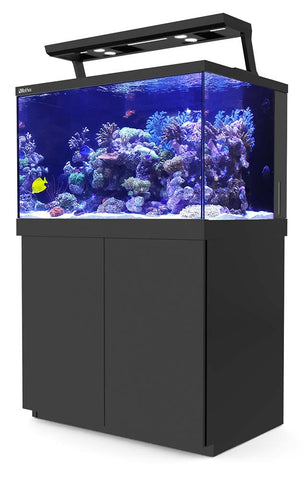

Red Sea Max S-Series 400 LED Reef System 110 Gallons

Red Sea

$4,899.00

The MAX^® S-Series is Red Sea’s flagship reef system and features the very latest in reef-keeping technology.
WiFi controlled Hydra 26™ HD LED lighting, REEF-SPEC^® filtration and circulation systems, customizable fascia and a one-plug control center allow you to focus on the beauty and diversity of your own piece of coral reef, rather than worrying about component selection, suitability and compatibility.

RED SEA MAX-S-LED

Owning a thriving piece of coral reef has never been easier than with Red Sea’s new MAX^®S-Series range of aquariums.

Watch Red Sea MAX^® S-Series full video presentation

MAX^® S-Series Specification Table

		MAX^® S Model
Specification	Description	MAX^®S 400	MAX^®S 500	MAX^® S 650
System water volume	Combined aquarium and sump	400 L (110 gal)	500 L (135 gal)	650 L (175 gal)
Aquarium volume	Display tank with rear circulation pump chamber	350 L (97 gal)	440 L (119 gal)	560 L (150 gal)
Filtration sump volume	Glass sump with preparation for auxiliary reactors or refugium	50 L (13 gal)	60 L (16 gal)	90 L (25 gal)
Aquarium glass thickness	Ultra clear front and side panels	12 mm (1/2”)	12 mm (1/2”)	15 mm ( 5/8”)
Surface skimmer	Built in suface skimmer on full width of aquarium	√	√	√
Lighting system	AI Hydra 26™ HD (90W)*	2 unit	3 unit	4 unit
Lighting – standard configuration	Full spectrum with nominal total output	180W	270W	360W
Lighting control	WiFi based system compatible with all iOS, Android, and WiFi enabled Mac or PC.	√	√	√
Total circulation l/h (gph)	Sump return + hidden individual 2,150 l/h (570 gph) circulation pumps	7800 (2000)	9500 (2500)	13600 (3600)
Main system pump l/h (gph)	Sump return + feed to skimmer / chiller / reactors	7000 (1850)	7000 (1850)	7000 (1850)
Protein skimmer – C-Skim 1800	800 l/h (210 gph) air flow – 1800 l/h (480 gph) water flow (PSK aspirator)	√	√	√
Integrated power center	10 individually switched sockets for pumps and accessories	√	√	√
Integrated water top up system	Easy-access storage tank with in-sump float valve	22 L (6 gal)	29 L (7.5 gal)	38 L (10 gal)
Mechanical filtration	Micron filter	2	2	2
Chemical filtration	600g (20 oz.) high grade phosphate-free activated carbon	√	√	√
Cabinet frame	Marine spec anodized aluminum profile	√	√	√
Cabinet external	Weatherproof Polyurethene painted MDF doors & panels	√	√	√
Cabinet Internal	Waterproof sump compartment, dedicated chiller compartment	√	√	√
Length	Display tank (MAX^® S Including Color Trim)	104 cm (41″)	128 cm (50.5″)	160 cm (63″)
Width	Display tank (MAX^® S Including Color Trim)	70 cm (27.5″)	70 cm (27.5″)	70 cm (27.5″)
Height	Display tank	64 cm (25”)	64 cm (25”)	64 cm (25”)
Height	Total system height (excluding LED light unit)	156 cm (61″)	156 cm (61″)	156 cm (61″)
