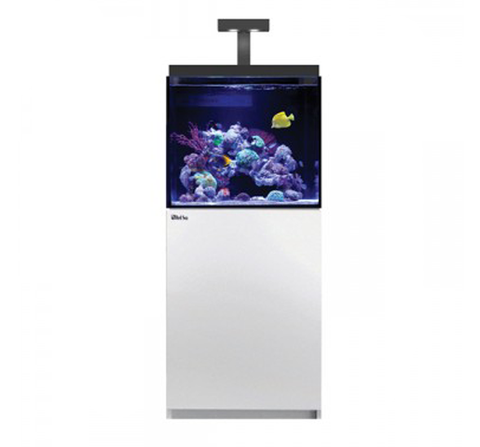

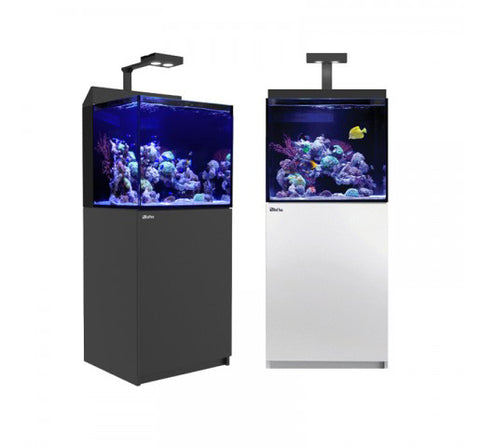

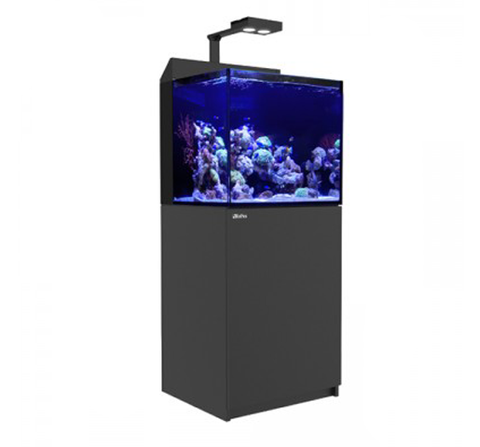

Red Sea MAX E-Series 170 LED Reef System 45 Gallons

Red Sea

$1,744.00

Fully Featured REEF-SPEC Open Top Reef Aquariums

The MAX^®E-series combines a contemporary, rimless design with state of the art technology.
The fully-featured REEF-SPEC^® MAX^®E system provides everything necessary in order to enable you to enjoy the beauty and diversity of your own piece of thriving coral reef, rather than worrying about component selection, suitability and compatibility.

The MAX^® E-Series features the very latest in reef-keeping technology including the Hydra 26™ HD LED lighting with Wi-Fi control, REEF-SPEC^® filtration and circulation systems, a revolutionary modular sump system and a one-plug control panel.

Watch Red Sea MAX^®E-Series full video presentation

Red Sea MAX^® E-Series Features

		Red Sea MAX^® E Model
Specification	Description	170	260
System water volume	Combined aquarium and sump (not including optional sump for MAX^® E)	170 L (45 gal)	260 L (69 gal)
Aquarium volume	Display tank	140 L (37 gal)	213 L (56 gal)
Rear Sump volume	Rear sump (MAX^® E)	30 L ( 8 gal)	47 L (13 gal)
Aquarium glass thickness	Ultra clear front and side panels	12 mm (1/2”)	12 mm (1/2”)
Surface skimmer	Built in Surface Skimmer with removable combs	√	√
Lighting system ReefLED™ 90 1 unit (90W) 2 units (180W) Lighting control WiFi based system compatible with all iOS, Android, and WiFi enabled Mac or PC. √ √
Lighting control	WiFi based system compatible with all iOS, Android, and WiFi enabled Mac or PC.	√	√
Total circulation lph (gph)	Hidden circulation pumps (not including sump return)	1 x 2150 (570)	2 x 2150 (570)
Protein skimmer	MSK 900: 900 lph (240 gph) water flow – 250 lph (66 gph) air flow	√	√
Chiller installation kit	Fittings for easy chiller installation	√	√
Integrated power center	Individually switched sockets for pumps and accessories with Circuit Breaker	7 Outlets	7 Outlets
Mechanical filtration	Low density sponge filter media	√	√
Media Rack	For rear sump	√	√
Chemical filtration	High grade phosphate-free activated carbon	200g (7 oz)	400g (14 oz)
Cabinet frame	Marine Spec	√	√
Cabinet Compartments	Dedicated chiller compartment (not in E-170 if optional in–cabinet sump installed)	√	√
Length	Display tank	60 cm (24″)	90 cm (36″)
Width	Display tank	57.5 cm (22.6″)	57.5 cm (22.6″)
Height	Display tank	55 cm (22″)	55cm (22″)
Height	Total system height (excluding LED light unit)	142 cm (56″)	142 cm (56″)
Optional In-Cabinet Sump
water volume		41 L (11 gal)	46 L (12 gal)
Water height		20 cm (8″)	20 cm (8″)
Skimmer chamber		32×30 cm 12.6″x11.8″	35×32 cm 13.8″x12.6″
Pump chamber		30×12 cm 11.8″x4.7″	35×12 cm 13.8″x4.7″
RO reservoir volume		5.4 L (1.5 gal)	8 L (2.1 gal)
